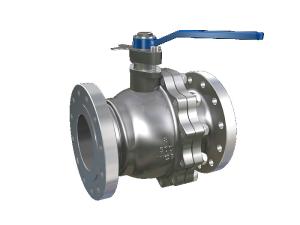

Two Piece Floating Type Ball Valve , Fire Safe Ball Valve ODM Service

Name: Two Piece Floating Type Ball Valve Fire Safe Ball Valve ODM Service
Brand: Kelite Valve
Price: 1 USD

Brand Name : Kelite Valve

Model Number : 1/2"-8", CL150-600

Certification : API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc

Place of Origin : China

MOQ : 1PCS

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 3000-5000PCS per month

Delivery Time : 20-70days

Packaging Details : Plywood packing or fumigation packing

Size : NPS 1/2"~8"

Pressure Rating : Class 150~600

Material : WCB, LCB, CF8, CF8M, CF3,CF3M

Design Standard : API 608, API 6D, BS 5351, ASME B16.34

Face to Face : ASME B16.10, API 6D, BSEN 558

End Connection : ASME B16.5, BSEN 1092

Contact Now

Two piece casting floating type ball valve of 1/2"-8" CL150-600 API 6D , 608 desgin

Product descriptions

Split body, full bore/reduced bore, floating ball, fire-safe certified to API-607/6FA, anti-blow out stem, cavity relieving seats, anti-static device, RTFE, Delrin, NYLON&DEVLON seat inserts. Floating ball valves are designed, constructed and tested according to the most recent international standards, such as API, ASME, BS, DIN, etc.

Two Piece Floating Type Ball Valve , Fire Safe Ball Valve ODM Service

Product description	Side-mounted floating ball valve
Model	Floating ball valve
Nominal diameter	NPS 1/2～NPS 8
Operating temperature	-46℃～220℃
Operating pressure	CLASS 150～CLASS 600
Material	WCB,LCB,CF8,CF8M,etc.
Design standard	API 608,ISO 17292,BS 5351
Structural length	ASME B16.10
Connecting end	ASME B16.5,ASME B16.25
Test standard	API 598, API 6D
Operation method	Handle, worm, motor-drive unit, pneumatic drive unit
Application fields	Water, petroleum and natural gas
Other remarks 1	A locking device is provided to prevent misoperation of valve.
Other remarks 2	Valve stem flyout prevention structure design, to prevent accident due to flyout of valve stem caused by abnormal pressurization in the chamber
Other remarks 3	Fireproof and antistatic design
Other remarks 4	Full bore of valve convenient for pigging, of small flow resistance and high flow capacity

Two Piece Floating Type Ball Valve , Fire Safe Ball Valve ODM Service
